Quick connect oil field couplings















































The hammer lug union, also known as a "WECO" coupling, hammer lug union or hammer lug adaptor, is used for quick connecting flexibles and pipelines. Available in a variety of options, including threaded API line pipe, butt weld and sour gas service. They are suitable for low pressure, Fig 50 (500psi), right up to Fig 2202, (20,000psi). The unions are manufactured from Forgings and come complete with material certification.

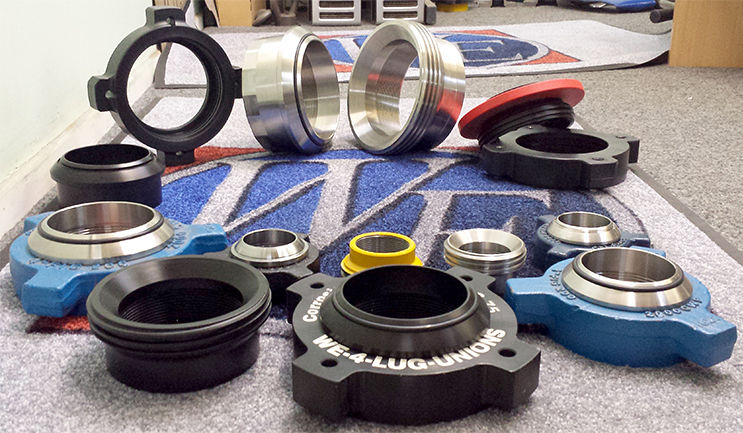

 A range of Hammer lug union sizes and figures, API threaded, butt weld and as flanged adaptors

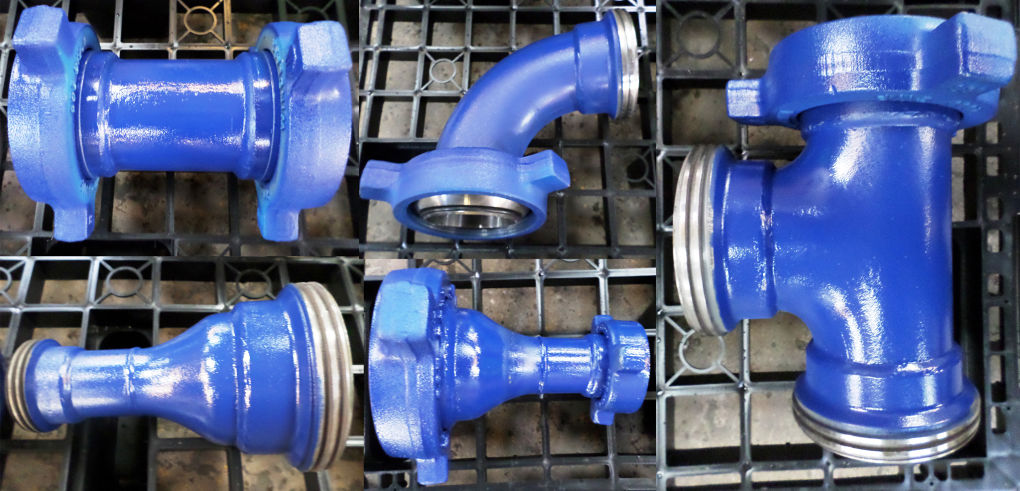

Hammer Lug Union Fig.206 elbow, tee and reducer adaptors

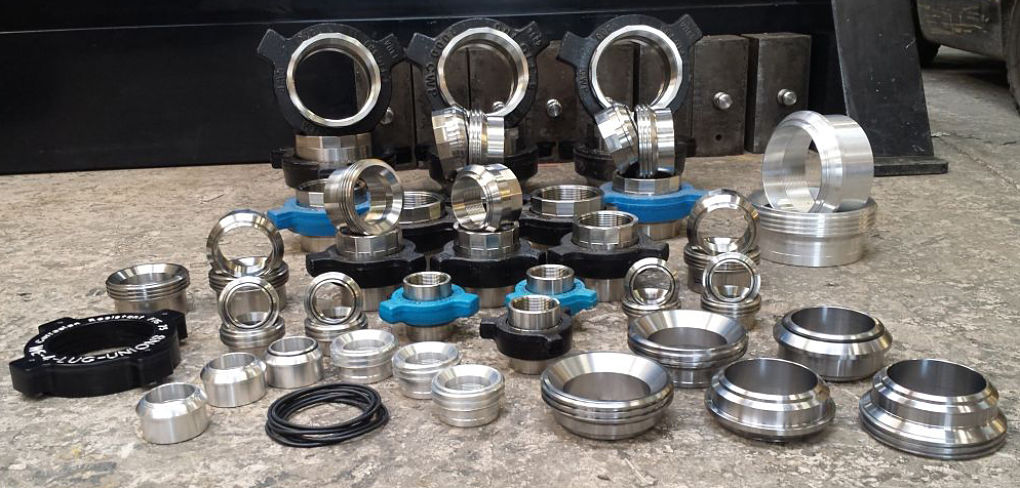

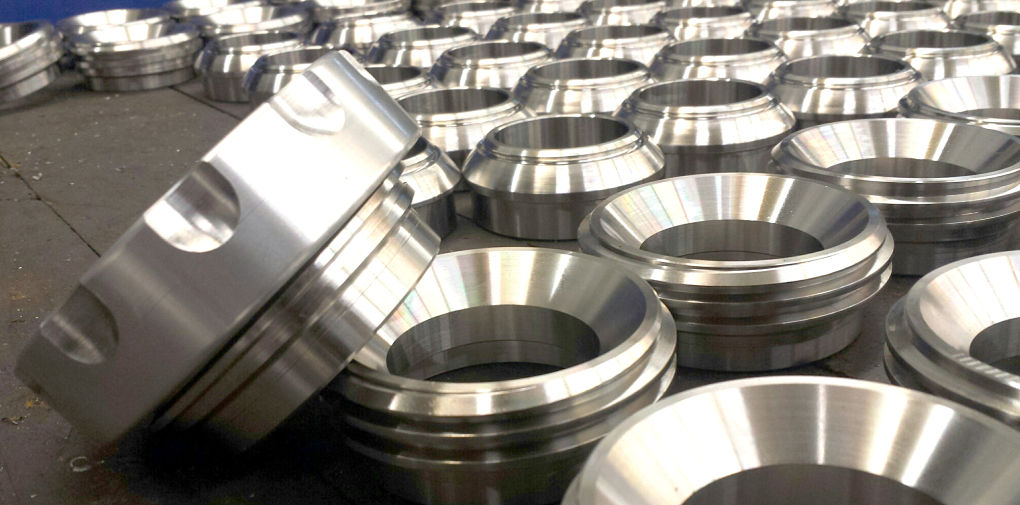

Hammer lug unions Fig.206 and blanking cap, produced in stainless steel

Hammer Lug Union Fig. 206 in-line filter / strainer adaptors

Hammer Lug Union Fig. 50 & Fig. 100 flange adaptors

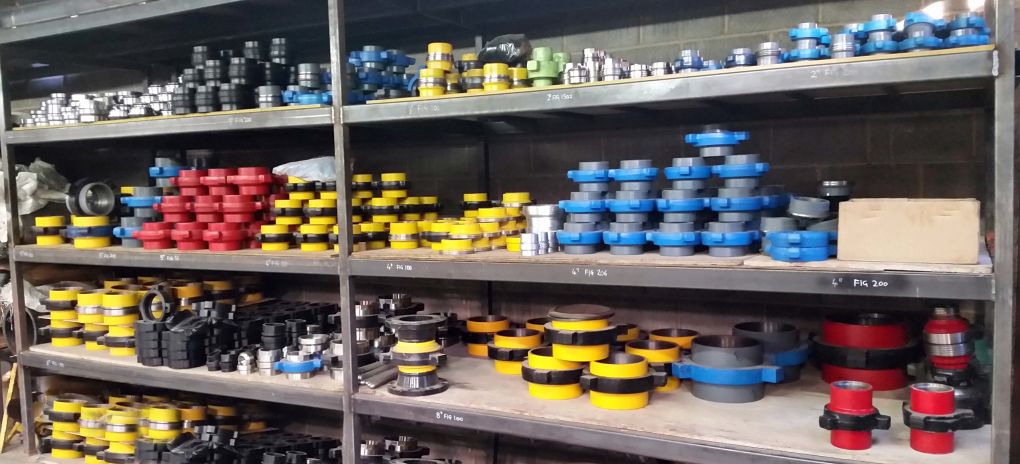

A range of Hammer lug union sizes and figures produced by W.E. Couplings in steel, stainless steel and aluminium

Hammer Lug Union Fig. 100 elbow adaptors in steel

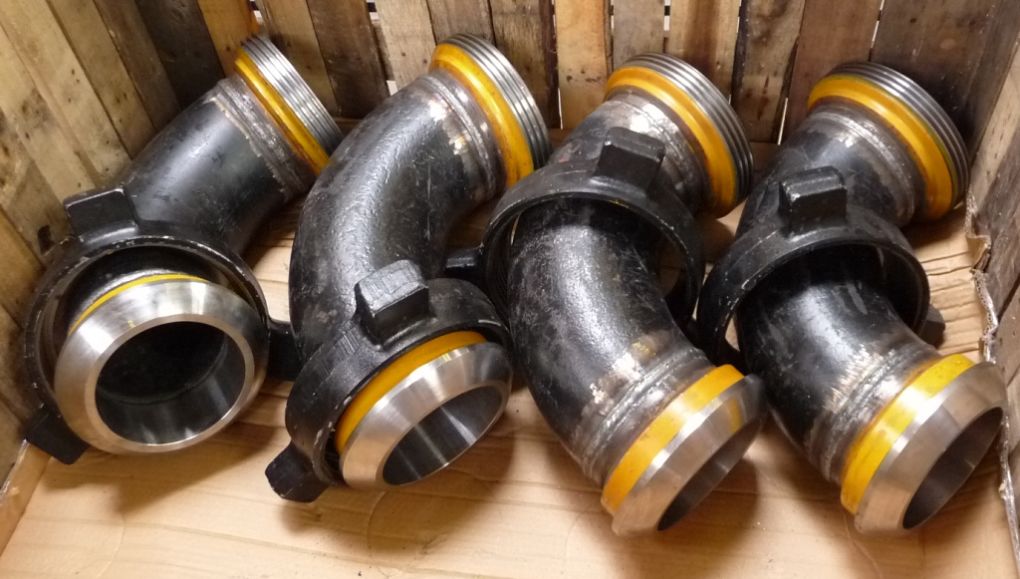

4" Hammer lug union Fig. 206 elbow adaptors

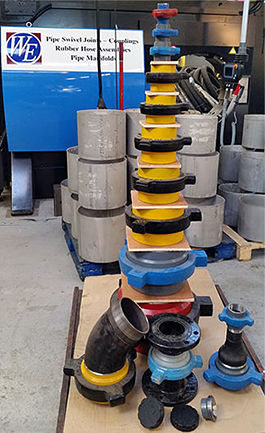

W.E. Couplings Research & Development of the various lug union sizes and figures

Hammer lug unions incorporated into flexible supply lines - with WESwivel joints in (2x) style 50 configuration with lifting rings, and with lifting hooks on flexible hose ends

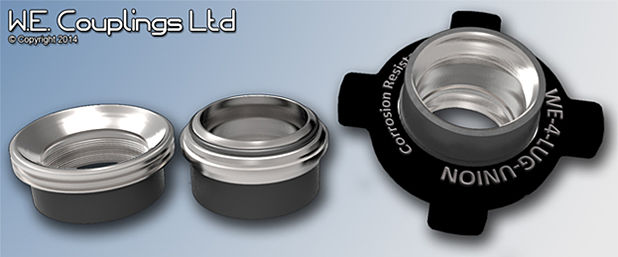

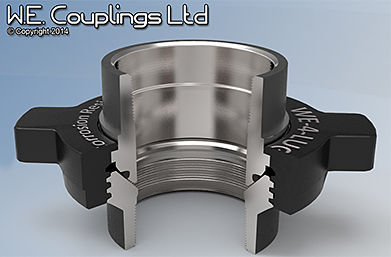

W.E. Couplings Research & Development into our own variation of the standard union, available soon in a range of materials, sizes and figures.
